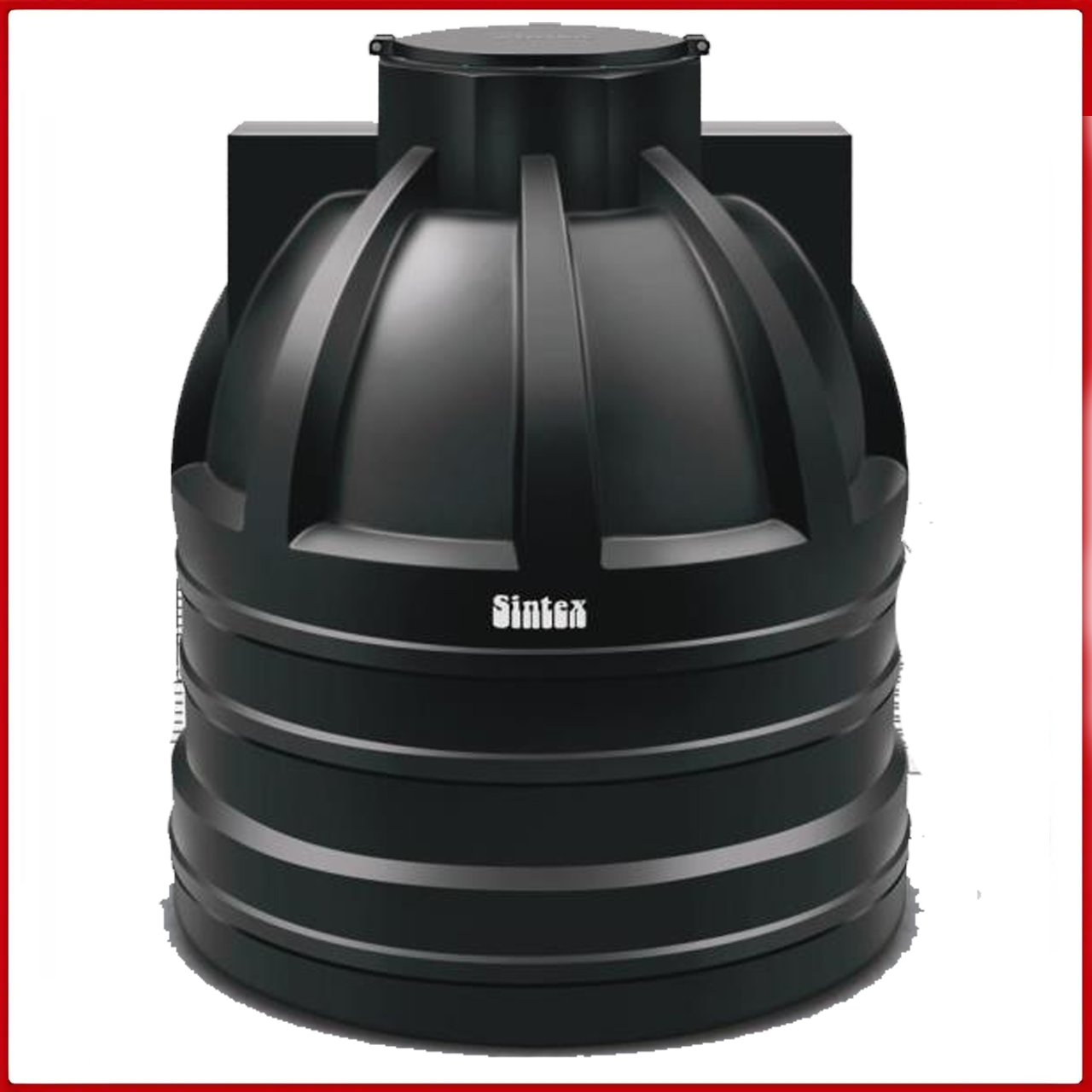

Sintex Underground Tank Sump Water Storage Tank
Sturdy Design, Easy Installation, Enduring Performance
Specially designed for underground applications
UNMATCHED FEATURES, UNIQUE BENEFITS :
• Specially developed for underground water storage applications
• 100% Virgin Plastic: For better strength, durability & flexibility
• One-piece Moulded: No joints, seams or welds
• Non-porous and does not allow water to get contaminated
• Rustproof and Leakproof
• Hygienic and suitable for potable water
• Impermeable to roots of trees
• Can be installed without an additional retaining wall
• Maintenance-free
• Strong SMC lid
• Available in double wall (Black outer layer and White inner wall) and single wall (Black)
RANGE & SPECIFICATIONS
| Capacity (L) | Diameter (mm) | Height (mm) | Hatch Extension (mm) | Diameter of Hatch (mm) | Hatch |
|---|---|---|---|---|---|
| 1000 | 1200 | 1385 | 200 | 400 | 1 |
| 2000* | 1400 | 1850 | 200 | 400 | 1 |
| 3000* | 1650 | 1950 | 200 | 400 | 1 |
| 4000* | 1800 | 2150 | 200 | 400 | 1 |
| 5000* | 2000 | 2250 | 200 | 400 | 1 |
| 6000* | 2150 | 2300 | 200 | 400 | 1 |
Note: Dimension tolerance will be ±1.5% below 5000 L and ±3.0% for 5000 L, due to process limitation. *Available from selected factories.
