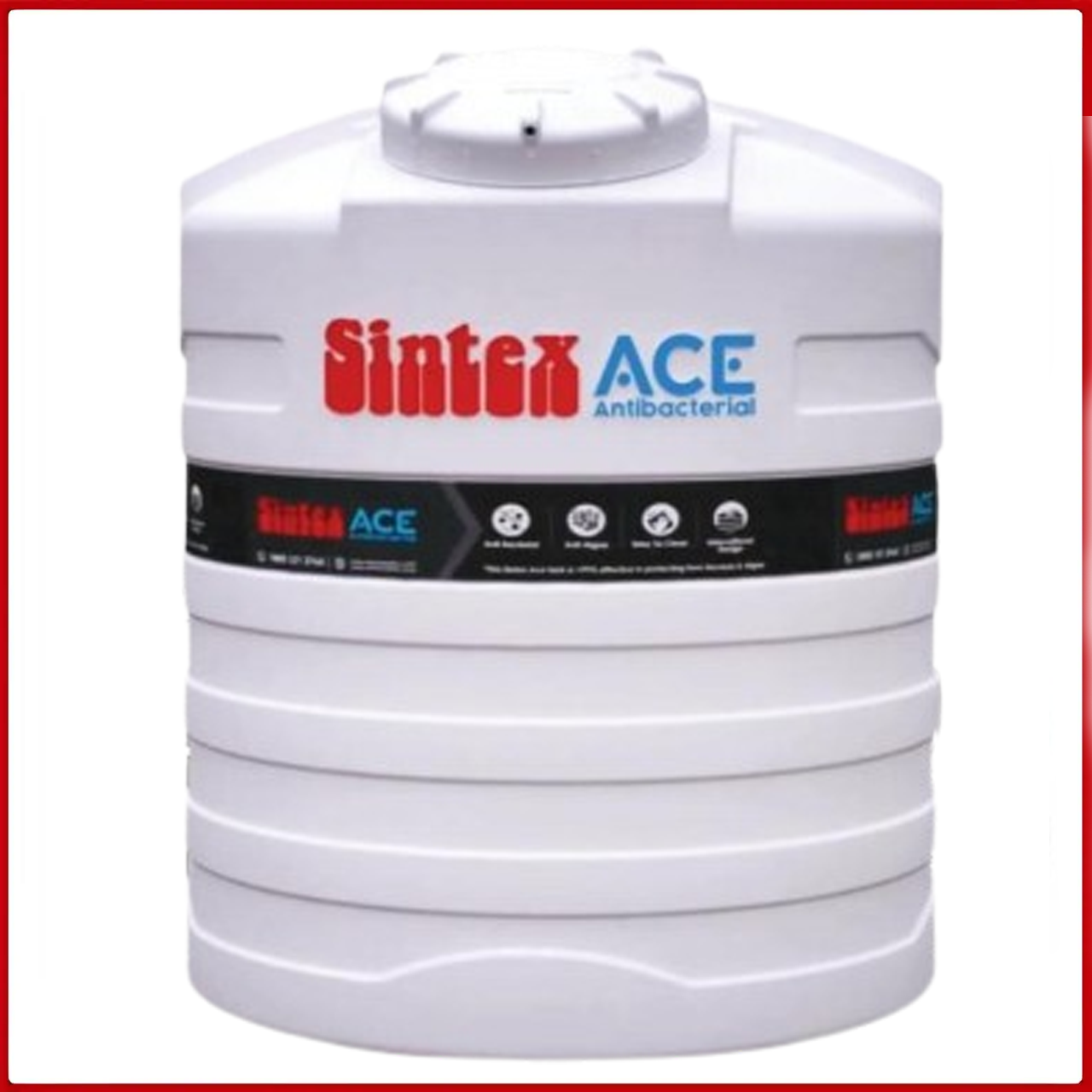

Sintex Ace Side Manhole Water Storage Tank
*Tested as per ISO 21702:2019, JIS Z 2801:2010, ASTM G29 & ASTM G21:2015
UNMATCHED FEATURES, UNIQUE BENEFITS
• >99% Effective in protecting from harmful bacteria
• 100% Virgin Plastic: For better strength, durability & flexibility
• Phthalate-free Granules & Additives: No cancer-causing materials are present
• 100% UV Stabilized Tank and Multi-layered Lid: Sunrays cannot reach the water, no algae formation
• Threaded Lid: Heavy winds, birds and animals cannot open the lid, thus maintaining safety & hygiene
• Multiple Layers: Outer (White) for aesthetic looks, Middle (Black) for UV Protection and Inner (Grey) to see water level
• Roto Moulding Manufacturing Process: Provides flexibility to take care of cyclical expansion and contraction due to temperature changes and filling/refilling of tank
• Modern, World-class Looks
• Multi-ribbed Design: Ensures long-lasting strength & durability
• ROHS compliant as per European Standards. No harmful substances used
RANGE & SPECIFICATIONS
| Capacity (L) | Diameter (mm) | Height (mm) | Diameter of Hatch (mm) |
|---|---|---|---|
| 500 | 920 | 1012 | 405 |
| 750 | 1030 | 1145 | 405 |
| 1000 | 1100 | 1328 | 405 |
| 2000 | 1350 | 1694 | 405 |
| 5000 | 2000 | 1980 | 405 |
Note: Dimension tolerance will be ±1.5% below 5000 L and ±3.0% for 5000 L, due to process limitation..
