Puf Insulated Sandwich Roof Panel

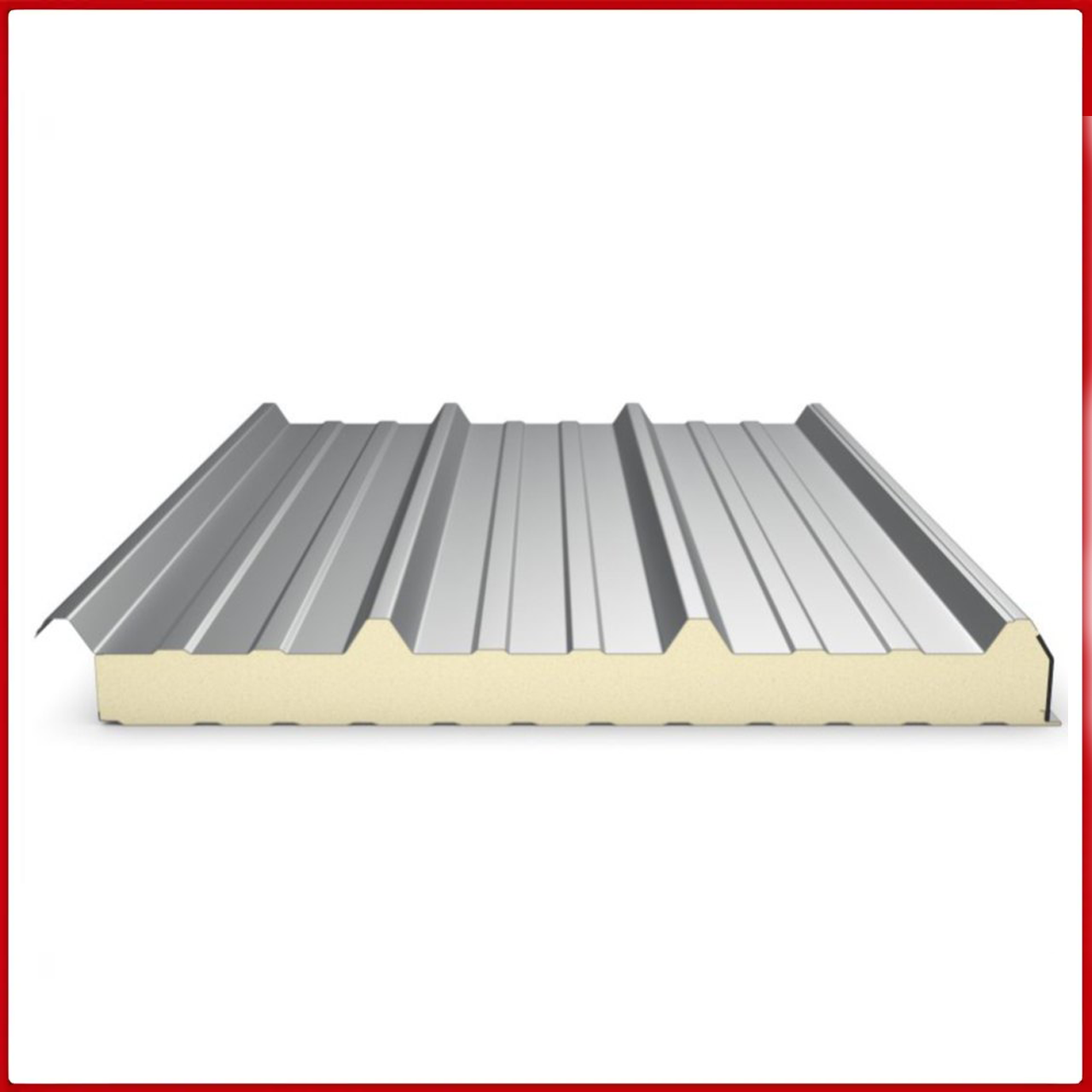

The PUR/PIR STRUPAN RW insulated roof panels are designed to provide high thermal performance, ease of installation, and versatility for various building sectors. These panels are ideal for both new and retrofit applications, offering excellent insulation compared to traditional built-up systems. Below is a detailed summary of the product features and specifications:
Product Highlights:
- Cover Width: 1000 mm
- Panel Thickness: Available in thicknesses ranging from 25 mm to 120 mm.
- Optimized Support Spacing: Higher core thickness options allow for optimized support spacing, reducing project costs.
- Length: Panels can be up to 12 meters long, minimizing the number of joints needed for the roof.
- Factory-Made Cutbacks: Cutbacks at endlaps and eaves for easier installation.
- Profile: The 5-rib profile is designed for long span requirements and heavy loading conditions.
- Walk-on Roof Capability: Suitable for roofs with medium-heavy traffic (subject to design).
- Integration with Accessories: Easily integrates with Kingspan Jindal Polycarbonate daylight panels and wind-driven turbo vents.
- Compatibility: Can be used with pre-engineered metal buildings (PEB) and conventional steel structures.
Applications:

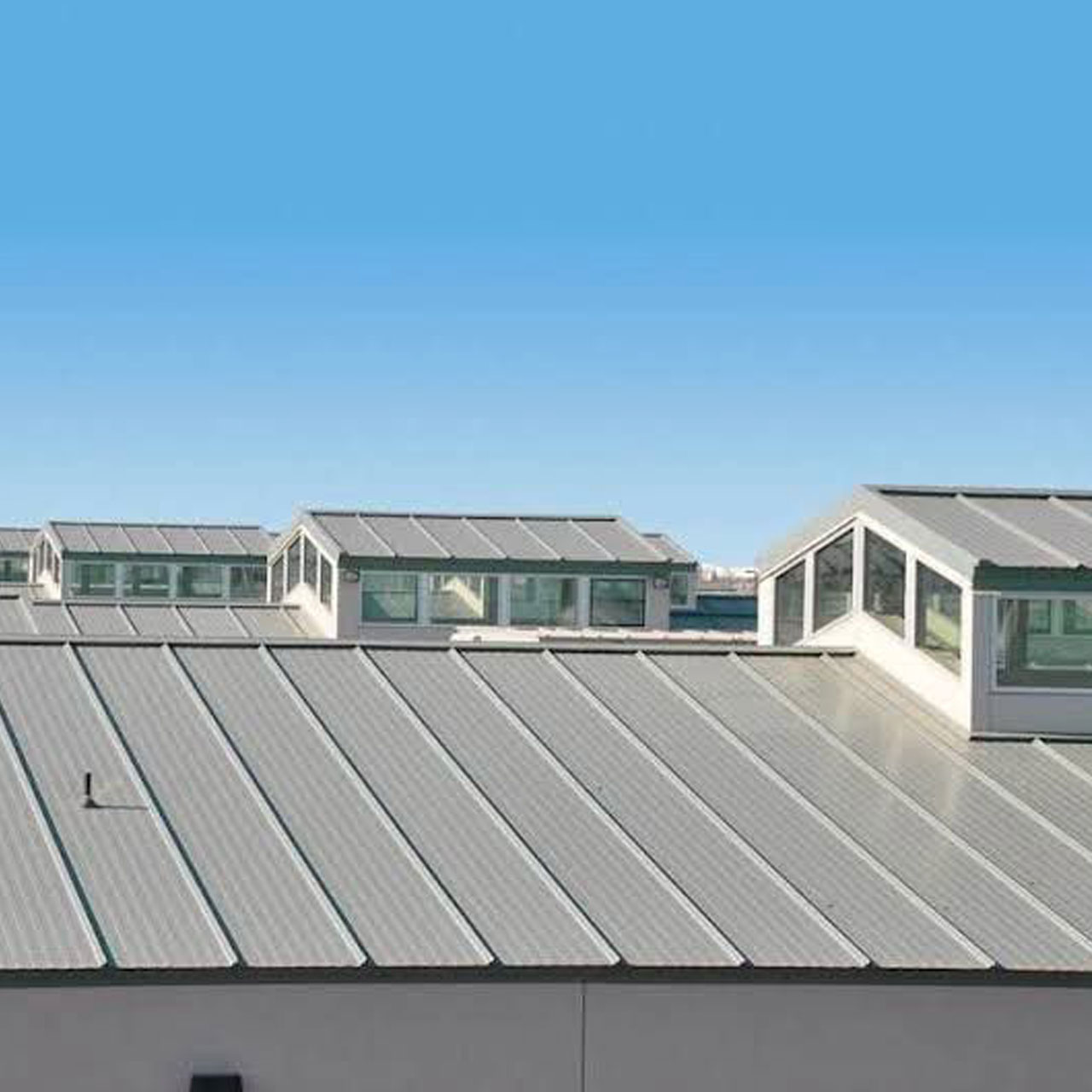

The STRUPAN RW trapezoidal roof panel system is suitable for various building applications, including:
- New builds and refurbishments
- Cold stores
- Warehouses
- Industrial buildings
- Prefabricated shelters and conventional steel structures
- Roof slopes of 5˚ (1 in 10) or more after deflection.
Thermal Performance & Dimensions:
| Core Thickness (mm) | Overall Thickness (mm) | U-Value (W/m² K) | R-Value (m² K/W) | Weight (kg/m²) |
|---|---|---|---|---|
| 25 | 60 | 0.72 | 1.39 | 8.78 |
| 30 | 65 | 0.62 | 1.61 | 8.96 |
| 40 | 75 | 0.49 | 2.04 | 9.36 |
| 50 | 85 | 0.40 | 2.48 | 9.76 |
| 60 | 95 | 0.34 | 2.91 | 10.16 |
| 80 | 115 | 0.26 | 3.78 | 10.96 |
| 100 | 135 | 0.21 | 4.65 | 11.76 |
| 120 | 155 | 0.18 | 5.52 | 12.56 |
Insulation Core:
- The panels feature Kingspan Jindal PUR/PIR insulation, which is environmentally sustainable with zero ozone depletion potential.
- The insulation core is CFC/HCFC-free and is auto adhesively bonded to the external and internal faces for added strength and rigidity.
- Kingspan Jindal insulation is certified with the CII GreenPro ecolabel, ensuring sustainability throughout the product’s life cycle.
Certifications & Testing:
- Metal Substrate: Conforms to IS 15961 : 2012.
- Coating: RMP, SMP, SDP, and PVDF paint coatings as per IS 15965 : 2012.
- Quality Standards: The panels adhere to ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Health and Safety).
Quality and Durability:
Kingspan Jindal insulated panels are manufactured using state-of-the-art equipment and high-quality materials. The panels are rigorously tested and comply with international quality standards, ensuring longevity and performance.
Warranty:
The panels come with a Panel Protection Warranty that covers product finish, structural integrity, and insulation performance, subject to project-specific conditions. For further details, contact the Kingspan Jindal Technical Team.
Packing:
The panels are stretch-wrapped with EPS blocks underneath for easy lifting. Bundles are wrapped with polythene sheets and Kingspan Jindal branding. Custom packing and trucking details can be provided upon request.
Installation:
Site assembly instructions are available from Kingspan Jindal Technical Services and should be followed along with "Good for Construction" drawings provided by the contractor.
For more information or specific project requirements, contact the Kingspan Jindal Technical Team.
Features And Benefits:
• Rapid, single component, single-fix installation of up to 450 m2 per day
• Comprises an insulated core with a steel top sheet and lower sheet
• Stable for walk on roofs for medium to heavy roof traffic as per design
• Can be easily integrated with skylight and other roof opening arrangements
• Can be easily integrated with roof top solar PV and fall arrest systems
