Sintex Sewage Treatment Plant

Series NBF for medium and large applications like High Rise Residential Apartments, Commercial Complexes, Super Mall, Hospitals, Hostels, Universities, Schools, Large Office Buildings, Factories, Institutions etc.

Series PWTS-STBF for domestic and commercial applications such as Individual Houses, Low Rise Residential Apartments, Villas, Bungalows, Row Houses, Dhabas, Restaurants, Canteens, Offices, Small Factories, etc.

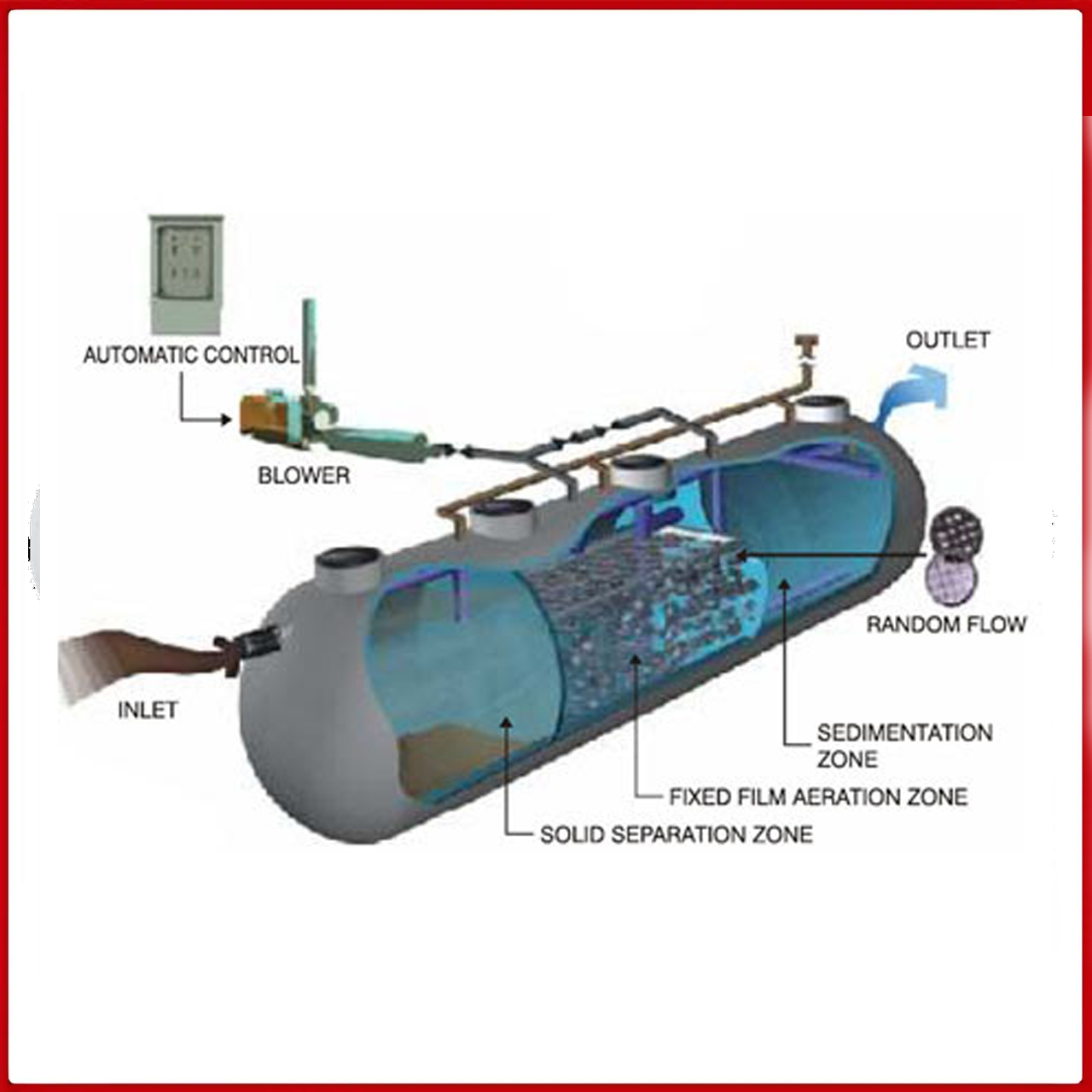

1 Solid Separation Zone (Anarobic Zone)

First stage transforms the influent solids to settled solids while allowing scum to float on the surface. It is a primary sedimentation zone in which settled sludge is stabilized by anaerobic digestion. The treatment efficiency of the chamber is in the range of 30% BOD removal.

2 Aeration Zone (Aerobia Zone)

Second stage is the aerobic zone along with plastic media inside the tank which in turn increases the surface area and retains micro-organism long enough to digest the organic substance. Clear water overflows to the next treatment chamber. Air is provided through blowers and higher contact time with the Bio-film on the plastic media facilitates efficient digestion. BOD removal is around 60%.

3 Final Sedimentation Zone

Final stage involves sedimentation where organic waste are settles in the sedimentation zone. The settled waste in the bottom is pumped back to the solid separation zone as a return sludge having active biomass (MLSS) to increase the efficiency of the system. The output from this zone is effluent that meets the stipulated PCB's Standards.

Series PWTS-STBF for domestic and commercial applications such as Individual Houses, Low Rise Residential Apartments, Villas, Bungalows, Row Houses, Dhabas, Restaurants, Canteens, Offices, Small Factories, etc.

4 Optional

For more Stringent effluent parameter, we also offer Tertiary Treatment Plant (TTP) addition to the system which does the job of filtration that further improves effluent.
