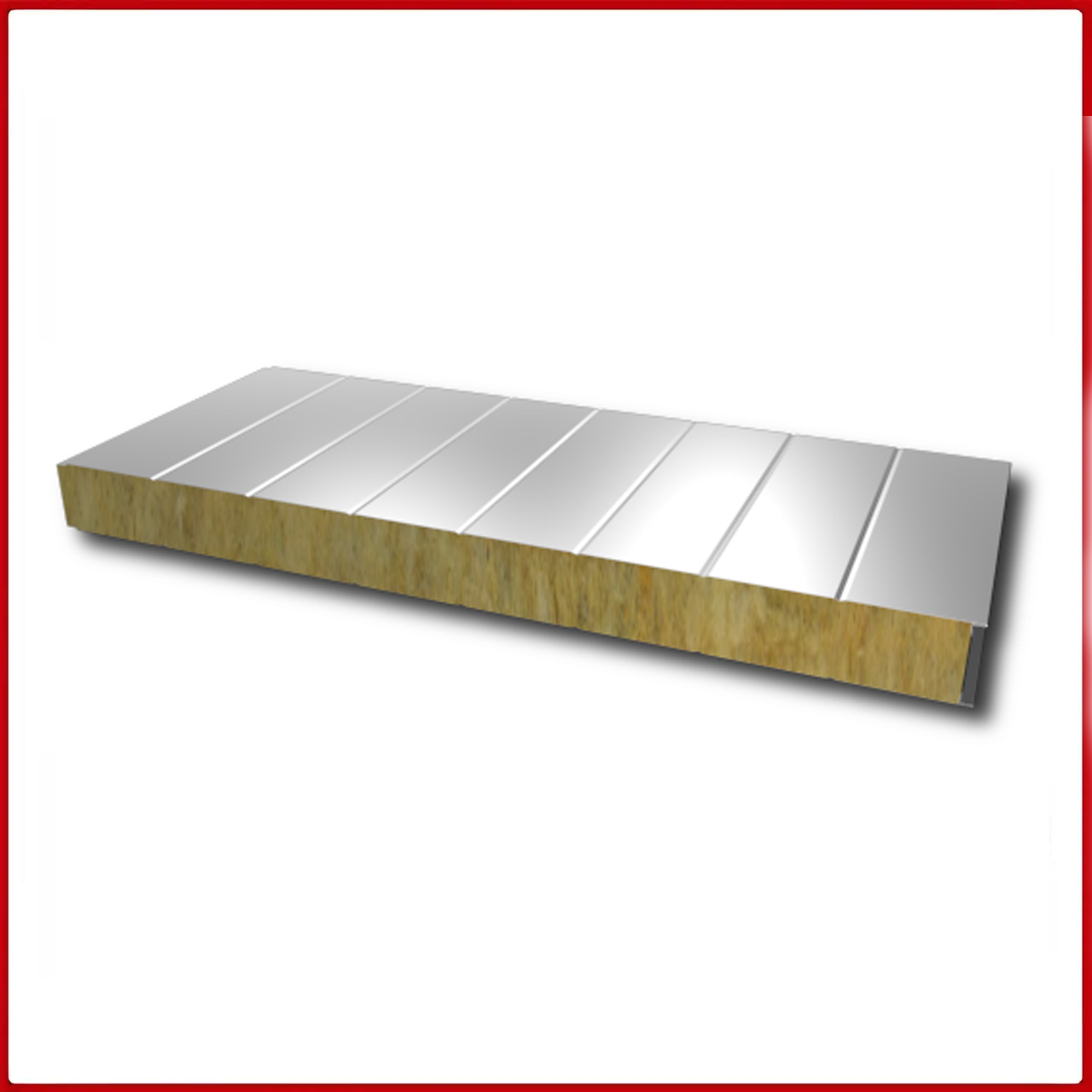

Rockwool Insulated Sandwich Panel

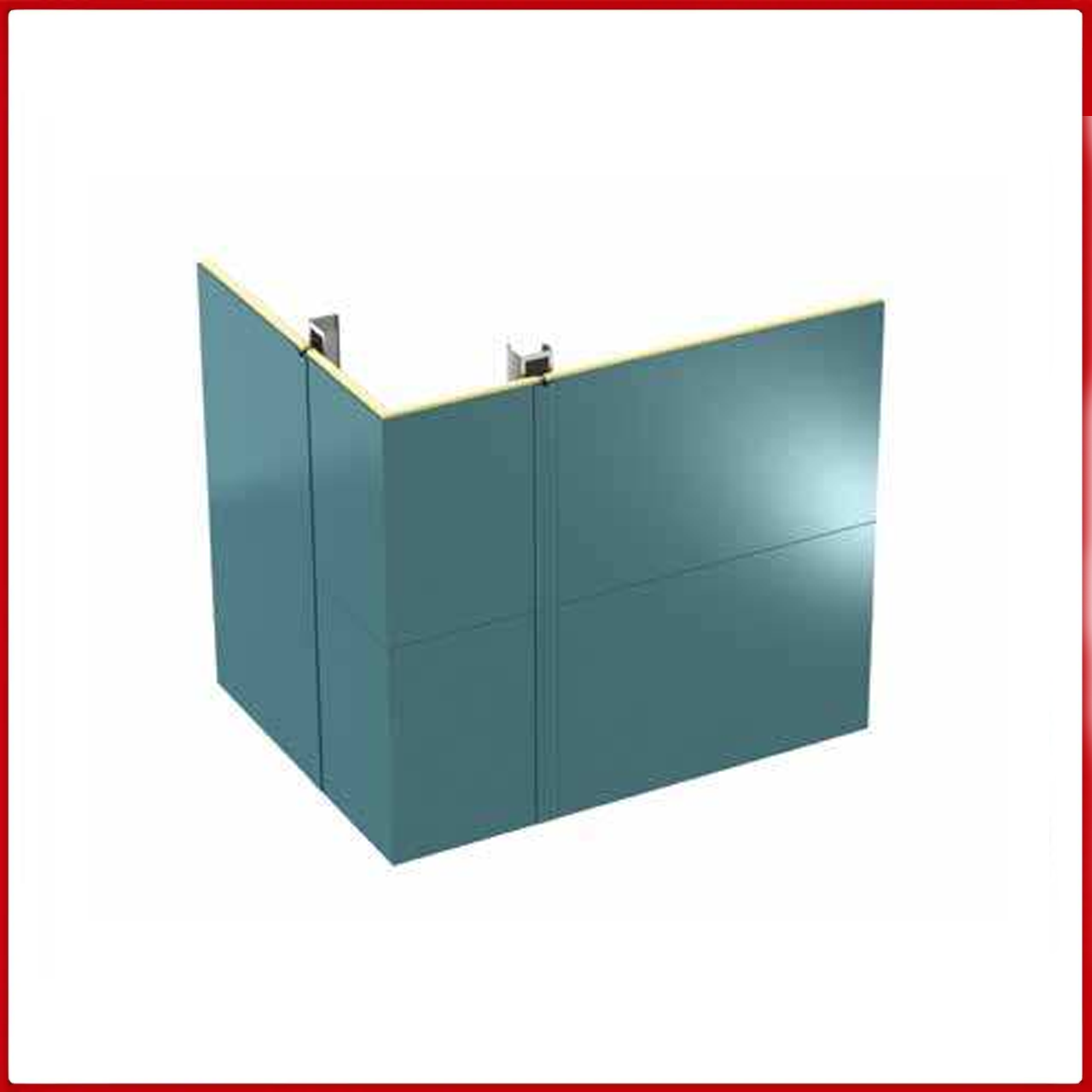

The JINROC WALL is an internal fire-rated wall and ceiling panel, an ideal solution when constructing internal partitions and protected zones. The panel also serves as an excellent substitute for conventional built-up external wall systems with stonewool insulation.
Product Highlights
- Panel thickness ranges from 50 mm to 200 mm with high-density stonewool core
- Cover width: 1000 mm
- Profile options include Flat, Wave, Mini-box, and Micro-rib
- Suitable for vertical wall and ceiling applications
- High thermal and acoustic performance
- Stonewool core to comply with A1 fire classification as per EN 13501-1, providing excellent fire ratings
- Product available in two densities of stonewool core: 100 kg/m³ and 125 kg/m³
- Fully engineered system allows integration with glazing, curtains, doors, and windows
Application
JINROC WALL is Kingspan Jindal’s cost-effective internal wall, external wall, and ceiling panel solution, providing built-in passive fire protection for large-scale buildings, thanks to its stone wool core. This panel system is ideal for use in storage applications, microelectronics facilities, data centers, and pharmaceutical applications where protected zones or clean rooms are often required. JINROC WALL and ceiling panels are engineered for quick installation when time is of the essence in the project.
Thermal Performance & Dimensions
| Core Thickness (mm) | Overall Thickness (mm) | U-Value (W/m² K) | R-Value (m² K/W) | Weight (kg/m²) |
|---|---|---|---|---|
| 50 | 51-52 | 0.80 | 1.25 | 13.01 |
| 60 | 61-62 | 0.67 | 1.50 | 14.01 |
| 80 | 81-82 | 0.50 | 2.00 | 16.01 |
| 100 | 101-102 | 0.40 | 2.50 | 18.01 |
| 120 | 121-122 | 0.33 | 3.00 | 20.01 |
| 150 | 151-152 | 0.27 | 3.75 | 23.01 |
| 200 | 201-202 | 0.20 | 5.00 | 28.01 |
Coating and Testing
Please contact Kingspan Jindal Technical Team for more data on project-specific requirements.
Environmental Impact
Kingspan Jindal insulated panels play a direct role in earning Green Building credits by being certified as an IGBC GreenPro product, specifically in the category of Building Insulation Materials.
Quality & Durability
Kingspan Jindal insulated metal panels are manufactured from high-quality materials using state-of-the-art production equipment. They adhere to rigorous quality control standards and comply with ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Health and Safety) standards, ensuring reliability and service life.
Site Installation Procedure
Site assembly instructions are available from Kingspan Jindal Technical Services and should be carried out along with project-specific “Good for Construction” drawings issued by the envelope contractor or Kingspan Jindal.
Sea Freight
Timber-crated palette skids are available for panel bundles requiring delivery via sea freight shipping, at additional costs.
Building Systems Component Analysis
• Assemblies with multiple components are more likely to experience delays in construction due to the scheduling of multiple trades, materials and site programmes.
• These systems are prone to poor site assembly accuracy and can therefore be subject to interstitial condensation, early life failure, missing components and thermal insulation gaps and voids.
• At the same time, guarantees, service support, site inspections and maintenance are also supplied by multiple sources which can lead to increased risk of liabilities.
Faster Build
• Kingspan Jindal insulated roof and wall systems offer significant advantages over conventional site-assembled systems.
• They provide a fast, single-fix installation with reliable thermal performance, insulation continuity, minimal air leakage and the elimination of interstitial cavity condensation and cold bridging
