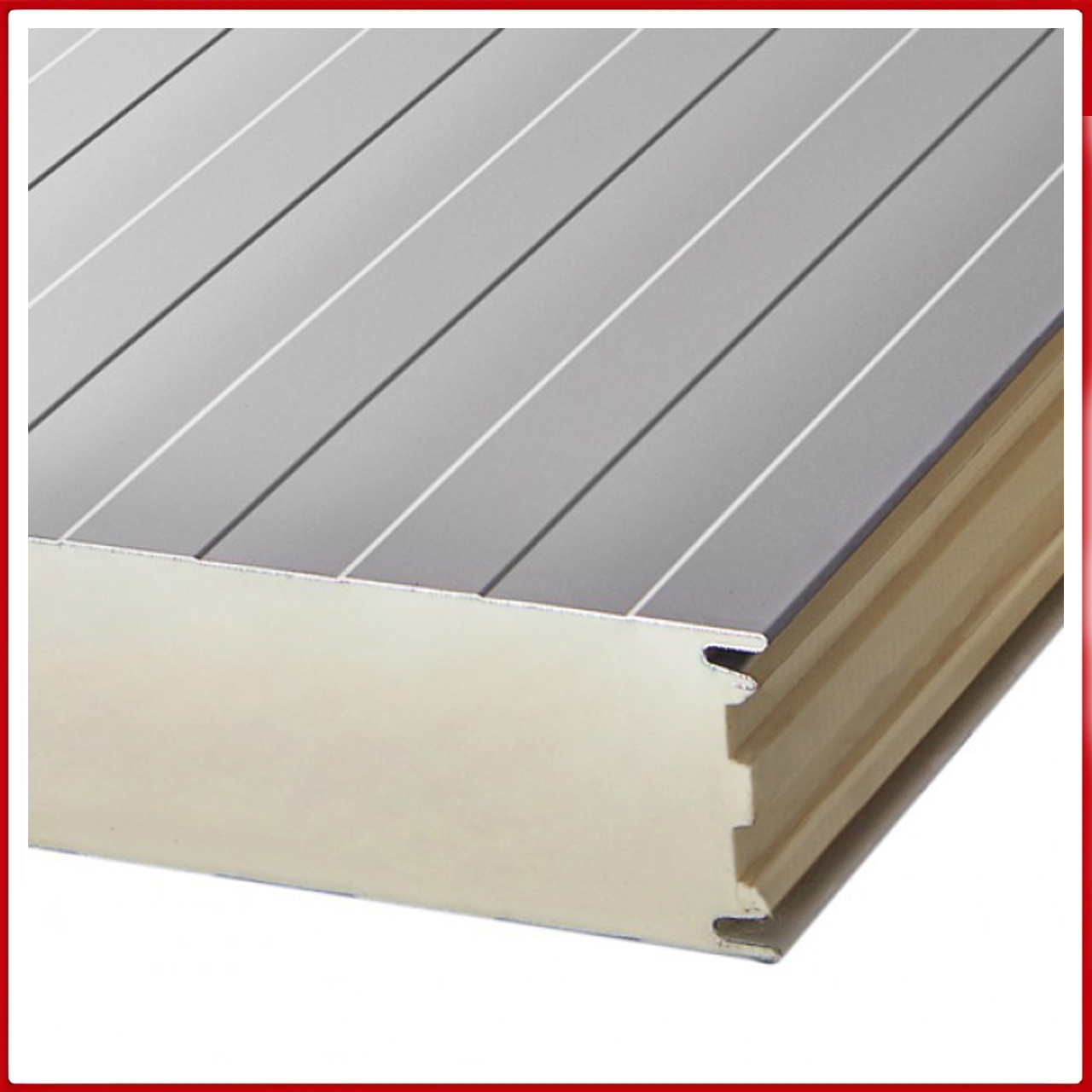

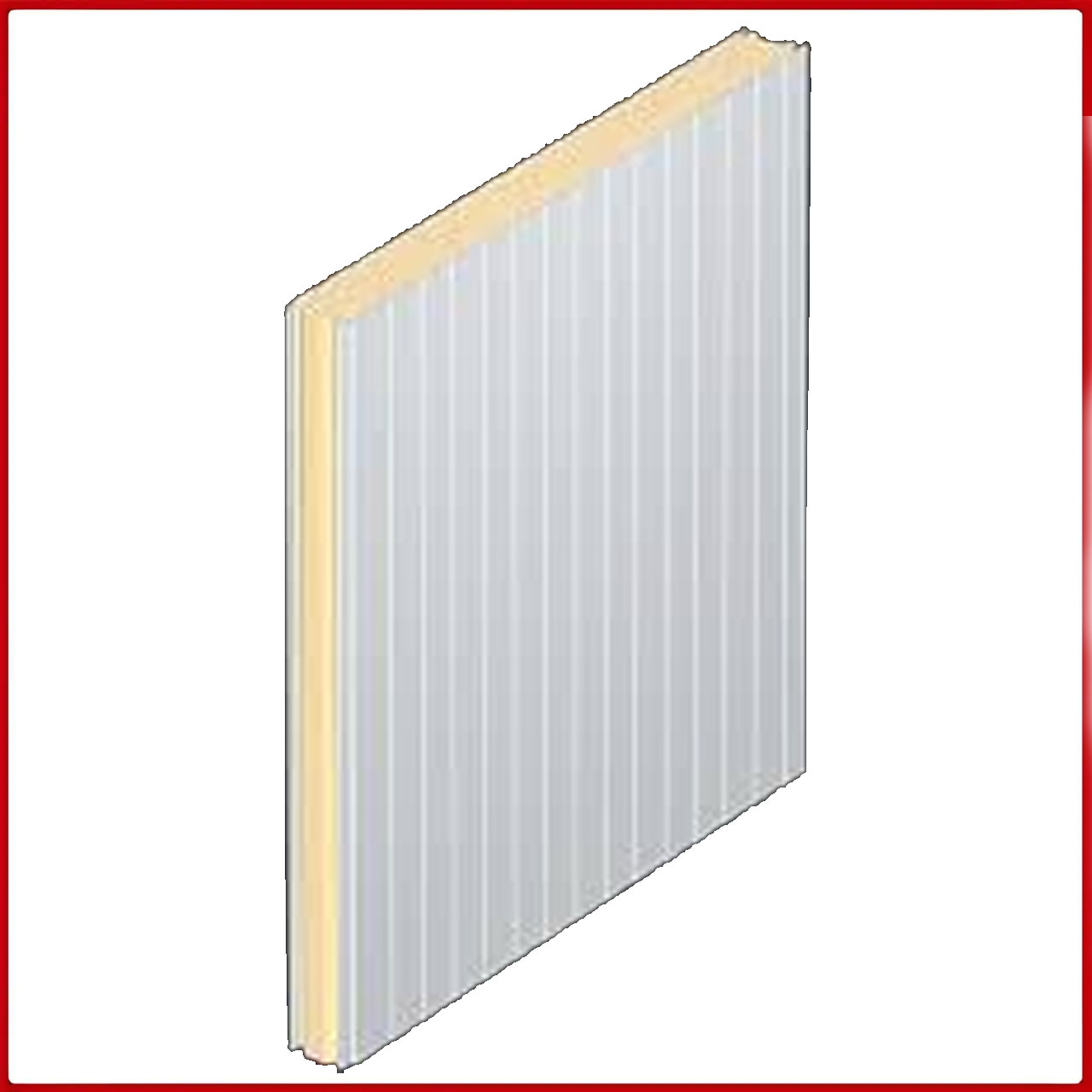

Puf Insulated Sandwich Wall Panel
PUR/PIR COLDWELL-1000/1100 insulated panels are applicable for internal and external walls and ceiling conditions in cold store and industrial buildings, food and meat processing plants, negative temperature and controlled environment areas, as well as in medical, pharmaceutical facilities.
Product Highlights
- Panel thickness ranges from 50 mm to 175 mm
- Cover width: 1000 mm & 1100 mm
- Profile options include Flat, Wave, Mini-box, and Micro-rib
- Suitable for vertical wall and ceiling applications
- Hygiene safe, resisting moisture ingress and any risk of toxic mould and bacterial growth
- Compatible with all kinds of RCC and steel buildings
- Fully engineered system allows integration with glazing, curtains, doors, and windows
Application
These insulated metal panels are ideal for vertical applications on external walls, using a through-fixed fastening system to withstand wind forces. Vertical installations require horizontal steel framing members. Additionally, the panels are suitable for internal walls and ceilings, including specialized designs like the "Box-in-a-Box" approach. They offer versatility for both vertical and horizontal installations, meticulously designed to handle temperature conditions ranging from freezer to ambient environments.
Thermal Performance & Dimensions
| Core Thickness (mm) | Overall Thickness (mm) | U-Value (W/m² K) | R-Value (m² K/W) | Weight (kg/m²) |
|---|---|---|---|---|
| 50 | 51-52 | 0.46 | 2.17 | 8.23 |
| 60 | 61-62 | 0.38 | 2.61 | 8.63 |
| 80 | 81-82 | 0.29 | 3.48 | 9.43 |
| 100 | 101-102 | 0.23 | 4.35 | 10.23 |
| 120 | 121-122 | 0.19 | 5.22 | 11.03 |
| 150 | 151-152 | 0.15 | 6.52 | 12.23 |
| 175 | 176-177 | 0.13 | 7.60 | 13.27 |
Insulation Core
Kingspan Jindal PUR and PIR insulation is environmentally sustainable, with zero ozone depletion potential and is CFC/HCFC free. The core is auto adhesively bonded to the external and internal faces during manufacturing, providing strength and rigidity to the panels.
Environmental Impact
Kingspan Jindal insulated panels play a direct role in earning Green Building credits by being certified as an IGBC GreenPro product, specifically in the category of Building Insulation Materials.
Quality & Durability
Kingspan Jindal insulated metal panels are manufactured from high-quality materials using state-of-the-art production equipment and adhere to rigorous quality control standards. They comply with ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Health and Safety) standards, ensuring reliability and service life.
Features And Benefits:
• Rapid, single component, single-fix installation of up to 450 m2 per day
• Comprises an insulated core with a steel top sheet and lower sheet
• Stable for walk on roofs for medium to heavy roof traffic as per design
• Can be easily integrated with skylight and other roof opening arrangements
• Can be easily integrated with roof top solar PV and fall arrest systems
