Kingspan Jindal Sandwich Panels

SPECIFICATION

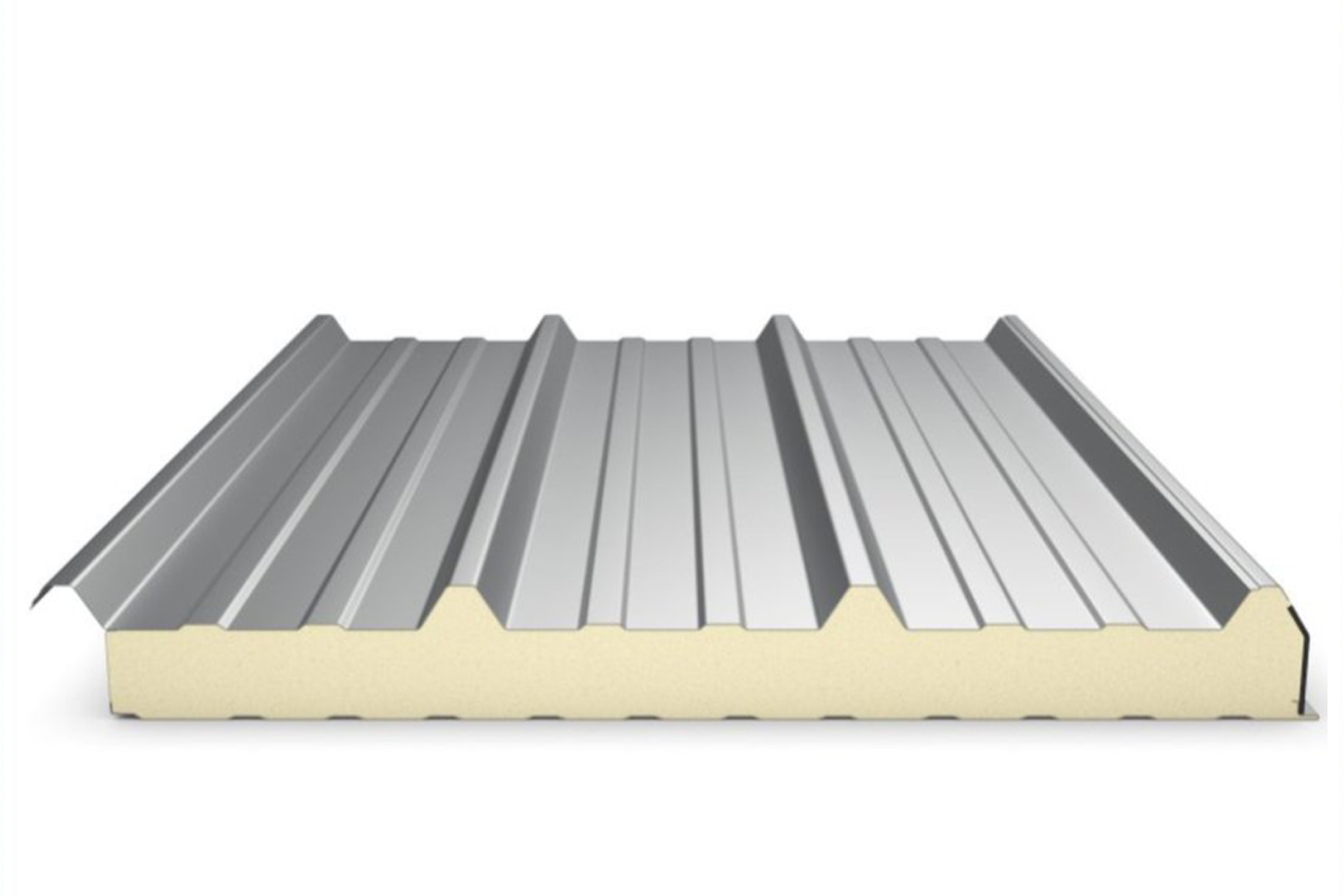

Profile: Insulated trapezoidal roof panel with 35 mm deep profile

Fixing Detail: Mechanical fixing is through top of rib to structural supports

Metal Type: Steel (galvanised or galvalume)

Finish / coating: See page 36

Application: Suitable for outer roofs having slope 1:15 (4º) or more or wall cladding

Lengths: Standard Length up to 12 metres. Longer lengths available on request

Cover Width: 1000 mm

Seals: Site applied weather and air seal

FEATURES / BENEFITS

• Rapid, single component, single-fix installation of up to 450 m² per day
• Comprises an insulated core with a steel top sheet and lower sheet
• Stable for walk on roofs for medium to heavy roof traffic as per design
• Can be easily integrated with skylight and other roof opening arrangements
• Can be easily integrated with roof top solar PV and fall arrest systems
