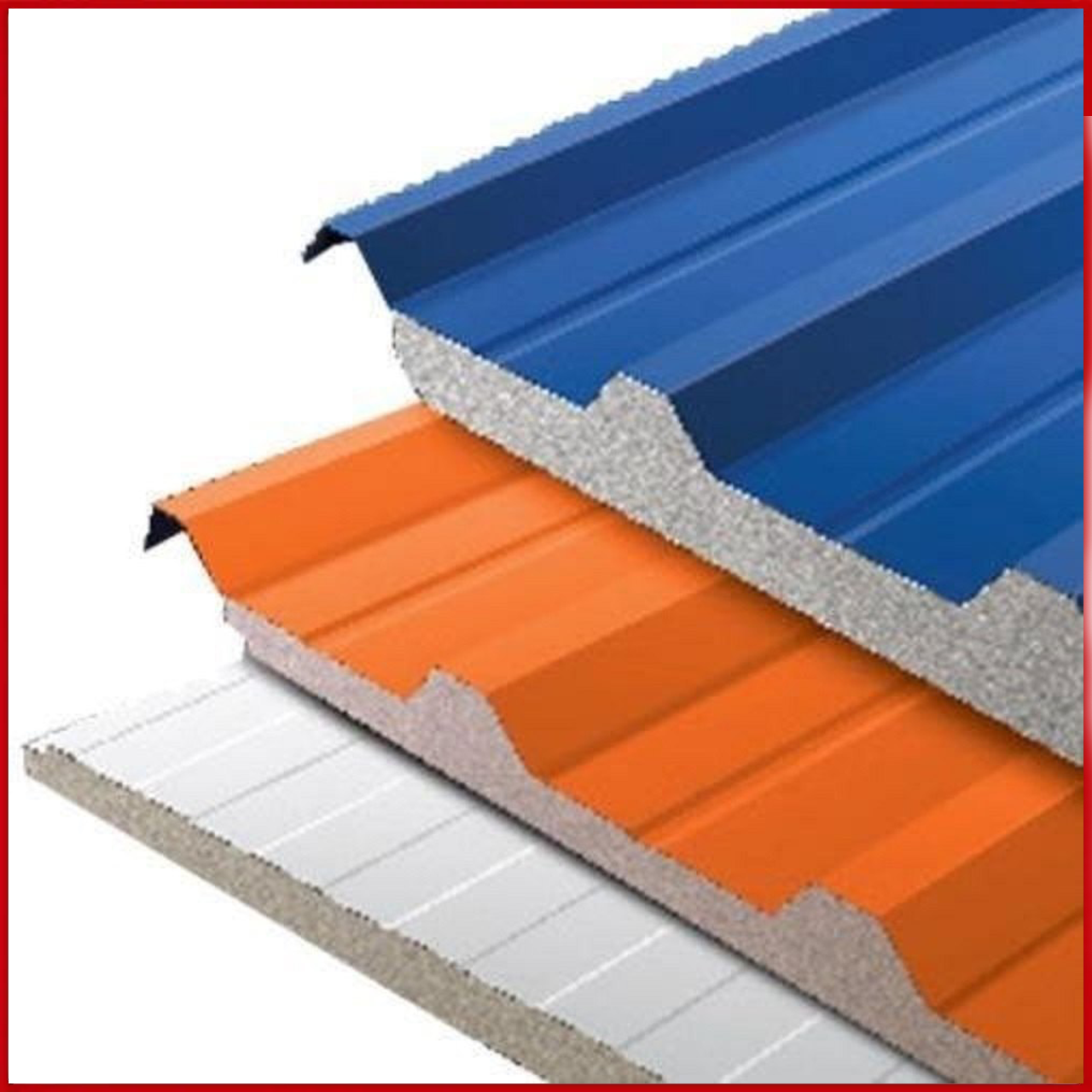

Sintex Puf Insulated Sandwich Panels
Introduction
We are all aware that the roof is responsible for maximum transfer of Upper Skin and Lower Skin heat. In an air-conditioned built environment, conventional roofing becomes the cause of excessive energy consumption. In a non-air-conditioned built environment, conventional roofing does not provide comfort to occupants. In line with our innovative past, we are pleased to introduce for the first time in India 'Sintex' Insulated Roofing Panels that are sure to change the way we live and build in the future. With Sintex Insulated Roofing Panels, we estimate the energy consumption to come down by as much as 20% to 30% in air-conditioned buildings. We also expect that even in ordinary dwellings meant for common man, comfort level will increase substantially with Sintex Insulated Roofing Panels. Thus, with Sintex Insulated Roofing Panels, the quality of living will be better all around.
Features And Benefits:
Unique Features
- Specially designed CROWN OVERLAPPING of the panel for 100% leak-proof construction
- Highest strength as compared to simple roofing that will increase purlin spacing and bring down cost of frame for installation
- Lightweight and extremely easy to install
- Aesthetically beautiful
- Long life due to special colour-coated sheets of superior quality
- Sound insulation because of sandwich PU foam insulation
- Enhance comfort level and hence useful for all types of constructions
- 100% maintenance-free for decades
Accessories
Various types of accessories are required for proper installation, such as external ridge, internal ridge, roof end cap, roof side cap, etc. These are available as optional items.
Product Specifications
| Product Code | Thickness |
|---|---|
| SIP-30-1001 | 30 MM |
| SIP-40-1001 | 40 MM |
| SIP-50-1001 | 50 MM |
| SIP-75-1001 | 75 MM |
| SIP-100-1001 | 100 MM |
Standard total thickness of colour-coated/galvalume sheets is 0.45 mm.
Applications
Sintex Insulated Roofing Panels are versatile and can be used for covering roofs at homes, industrial sheds, factories, warehouses, temporary structures, animal sheds, poultry sheds, multiplexes, etc. It is very easy to install these roofing panels or replace existing metal, asbestos, or E board-based roofing with Sintex panels.
Usage Instructions
There is a separate roof installation manual available. However, an installer has to take care of the following:
- Proper quality self-drilling self-tapping screws (fasteners) should be used. Fasteners of proper length should be fixed in sufficient quantity.
- Sintex panels contain peelable guard film on both sides to prevent damage during transit. However, guard film must be removed from the upper skin and lower skin of the panels immediately after installation.
- Sintex accessories are to be fixed on the periphery of the panels so that foam is fully covered.
