UPVC PLUMBING PIPES

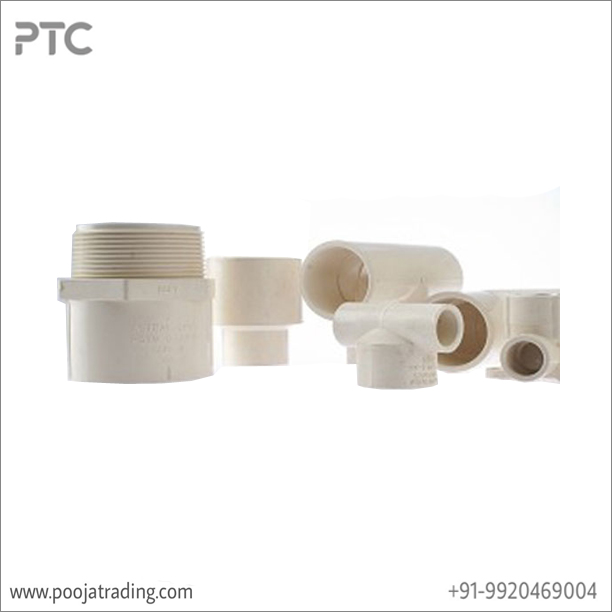

UPVC Pipe and Fittings
SPECIFICATIONS
  • Material : Unplasticized PVC - U.V. Stabilized.
  • Colour : Ivory
  • Standards : Pipes - Schedule 40 and 80 AS per ASTM D - 1785 (Plain ended)
    Fittings - Schedule 80 - As per ASTM D - 2467
  • Working Temperature : Up to 60 C - Continuous
    Up to 90 C - Short time up to 3 mins.
  • Test : Tested for potable water supply under guidelines of
    IS - 4985 for Pipes
    IS - 7834 - for Fittings


Dimension and water pressure rating at 23 C for solvent weld pipes as per ASTM D-1785

Nominal Bore
Outside
Diameter
Schedule 40
Schedule 80
Wall
Thickness
Working
Pressure
Wall
Thickness
Working
Pressure
(Inch)
(mm)
(mm) kg/cm
(mm) kg/cm
1/2"
21.34 +- 0.10
2.77 + 0.51
41.4
3.73 + 0.51
50.6
3/4"
26.67 +- 0.10
2.87 + 0.51
33.1
3.91 + 0.51
47.6
1"
33.40 +- 0.13
3.38 + 0.51
31.0
4.55 + 0.53
43.4
11/4"
42.16 +- 0.13
3.56 + 0.51
25.5
4.85 + 0.58
35.0
1.1/2"
48.26 +- 0.15
3.68 + 0.51
22.8
5.08 + 0.51
42.4
2"
60.32 +- 0.15
3.01 + 0.51
10.3
5.54 + 0.66
27.6

APPLICATION :

• Water connections for buildings
• Water distribution systems for bathrooms, washing places such as airports, bus station, railway station etc. Jointing Methods


SOLVENT CEMENT JOINT :
  • Cut the pipe of required length and clean the end
  • Chamfer the cut edge on the pipe for easy entry
  • Mark the depth of insertion on pipe end
  • Roughen the pipe insertion surface (externally) and socket of the fitting (internally) by using emery paper
  • Apply a thin coat of PVC solvent cement on the roughened surface with a brush. Avoid excess solvent cement
  • Insert the pipe end inside socket fitting fully and turn through 90ยบ for even spreading of solvent cement. Hold the joint for about 3 minutes
  • Cure the joint for 24 hrs. for a proper and permanent joint.
