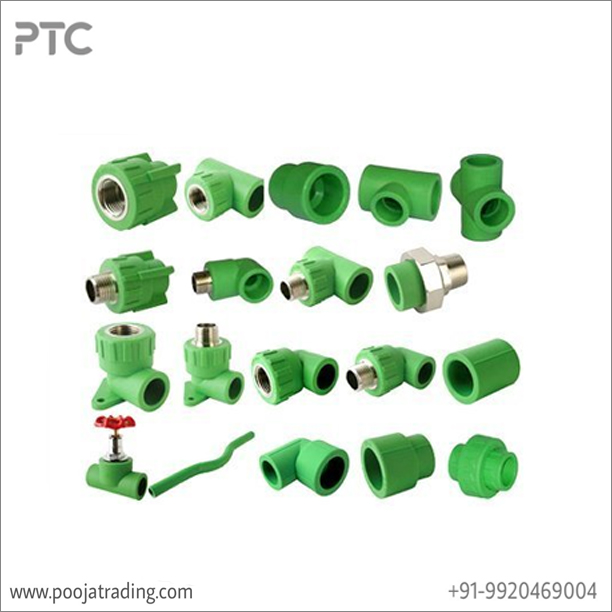

PPR PLUMBING SYSTEMS

Size	Min. Wall Thickness	Bore Diameter	Min. Wall Thickness	Bore Diameter	Min. Wall Thickness	Bore Diameter
20	3.4	13.2	2.8	14.4	1.9	16.2
25	4.2	16.6	3.5	18.0	2.3	20.4
32	5.4	21.2	4.4	23.2	2.9	26.2
40	6.7	26.6	5.5	29.0	3.7	32.6
50	8.3	33.4	6.9	36.2	4.6	40.8
63	10.5	42.0	8.6	45.8	5.8	51.4
75	12.5	50.0	10.3	54.4	6.8	61.4
90	15.0	60.0	12.3	65.4	8.2	73.6
110	18.3	73.4	15.1	79.8	10.0	90.0
160	26.6	106.8	21.9	116.2	14.6	130.8

All dimensions are mm- Single layer (Green Colour) pipes for indoor installations.- Single layer (Black Colour) pipes for solar heating systems.- 3 layer pipes for outdoor installations.
Outer layer (Green Colour) PP-R is UV stabilized which makes pipes suitable for use under direct sunlight. inner layer (White Colour) PP-R is antimicrobial which adds in safety against inside bacterial growth. Middle layer (Black Colour) PP-R ensures the required strengh of the pipes.

SPECIFICATIONS :

• Pressure Rating of Pipes : 20, 16 & 10 kg/cm2
• Pressure Rating of Fittings : 25 kg/cm2
• Operating Temperature: up to 95'C

PROPERTIES AND ADVANTAGES :

• Better Corrosion Resistance - No scaling withstand higher 'pH ' values.
• Non-Toxic, Hygienic 'Green Product - safe fr grinking water. No harmful effects to human & ecology.
• HIgh Vicat softening Temperature - Ensure thermal stability for hot water application.
• UV Stabilized - Three Layer pipes are suitable for outdoor installations exposed to direct sunlight.
• Good Chemical Resistance - Suitable for most f the industial liquids.
• Heat Fusion Jointing (No use of solvent) - Results in a homogeneous plastic system ensuring leak proof joints.
• Bacteriologically Neutral - Can be used underground. Also the inside fluid remains free from bacterial growth.
• Long Life - can exceed 50 Years when operated rated temperature and pressure conditions.
